You have calculated a stockpile and want to display the measurement on top of the pile as an annotation.


Step-by-Step Guide

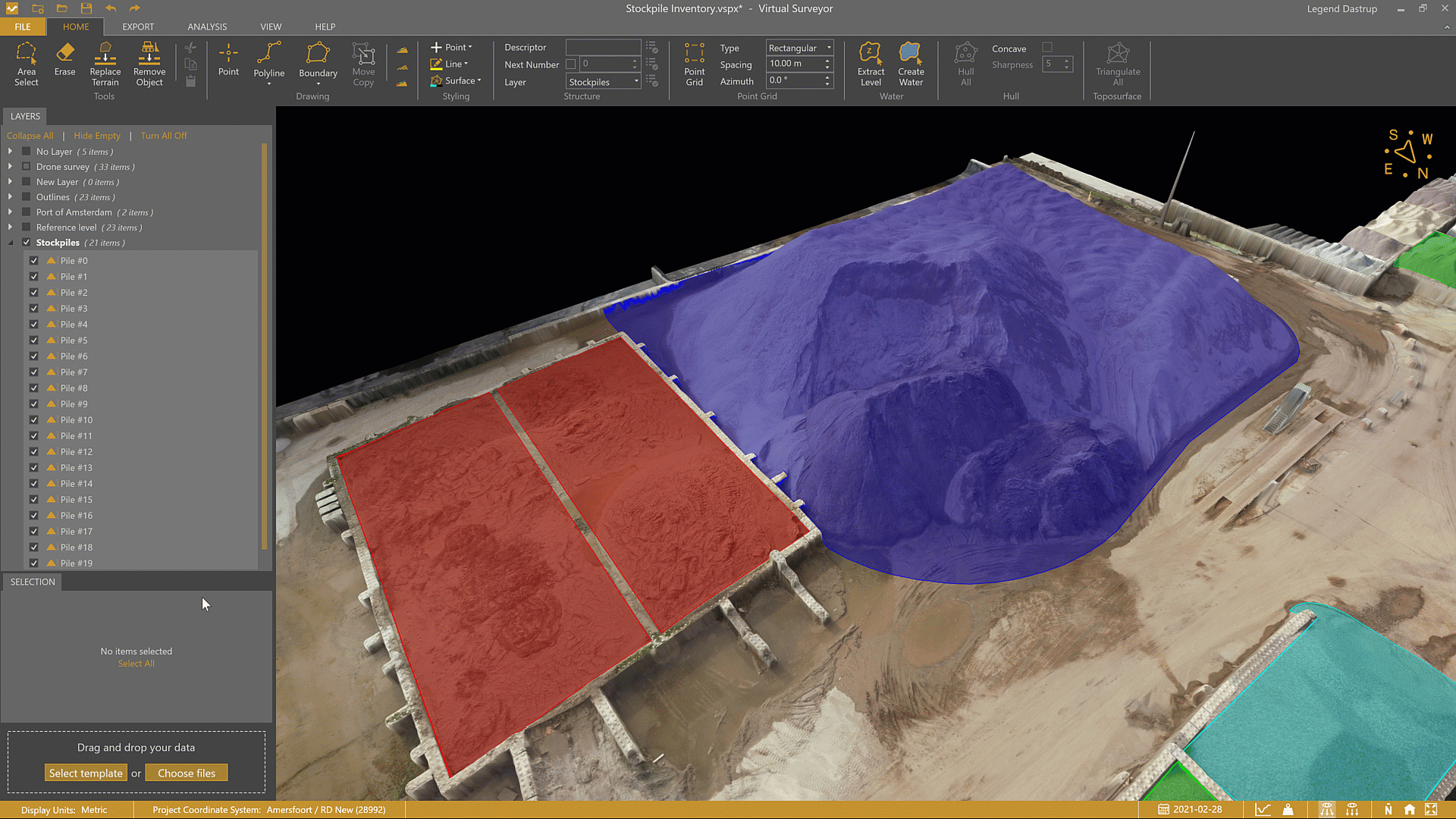

  1.  Select the stockpile items you want to display the volume annotations on.
  2. When a stockpile is selected, the volumes appear highlighted in the Project View and the TOOLS for Stockpile tab appears.

  3. Go to the TOOLS for Stockpile tab.
  4. Tick the Volume checkbox in the Annotate group

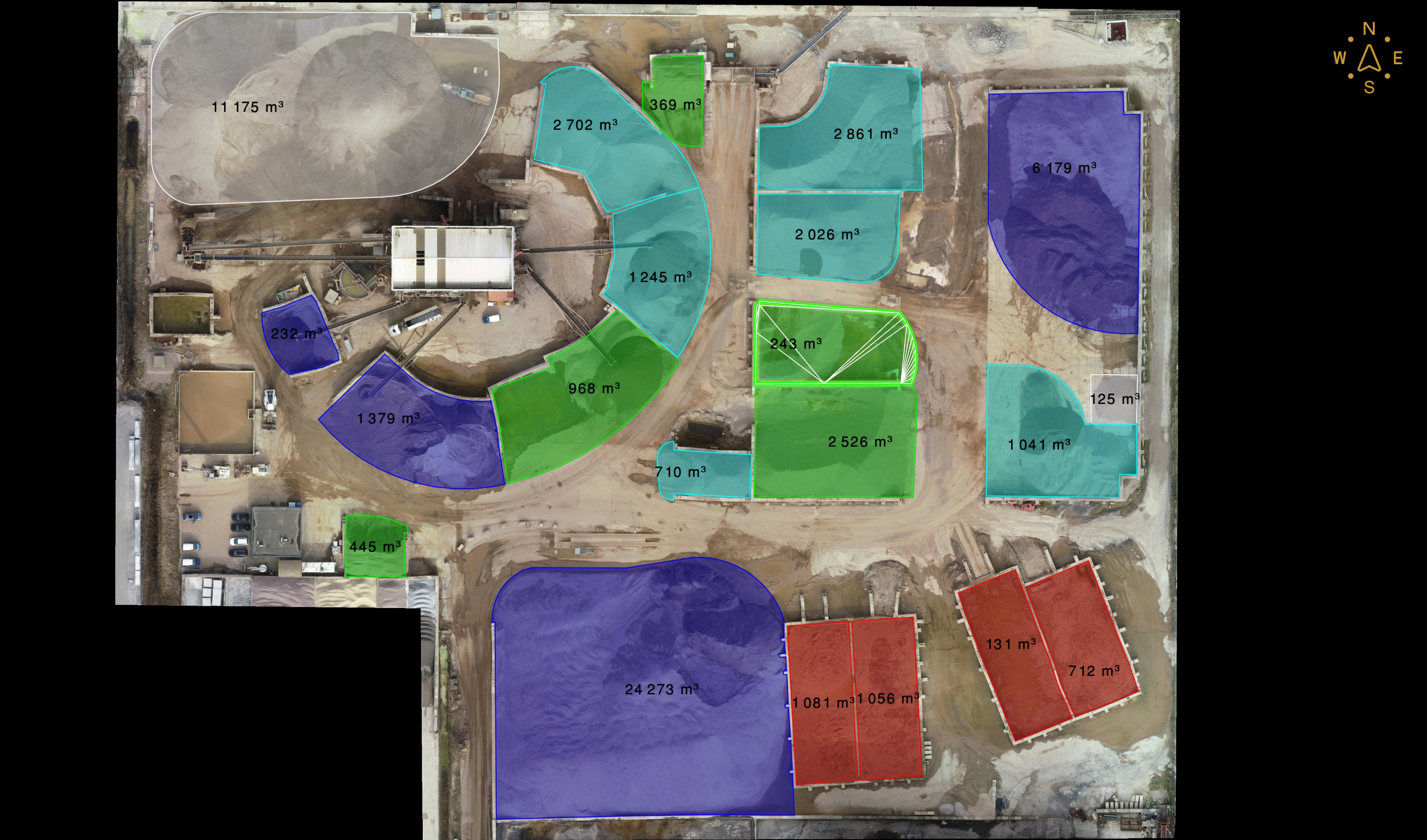

  5. The volume measurement is displayed in the Viewport on top of the pile


Tips & Tricks

  • You can remove the annotation again by unchecking the Volume checkbox. This action applies to the selected stockpile.
  • This operation works for all selected objects. So you can create/remove multiple annotations in one operation.
  • If no volume measurement is available, then the Volume checkbox cannot be ticked.
  • To get a better visualization of the annotations, use the top-down view (2D mode).
